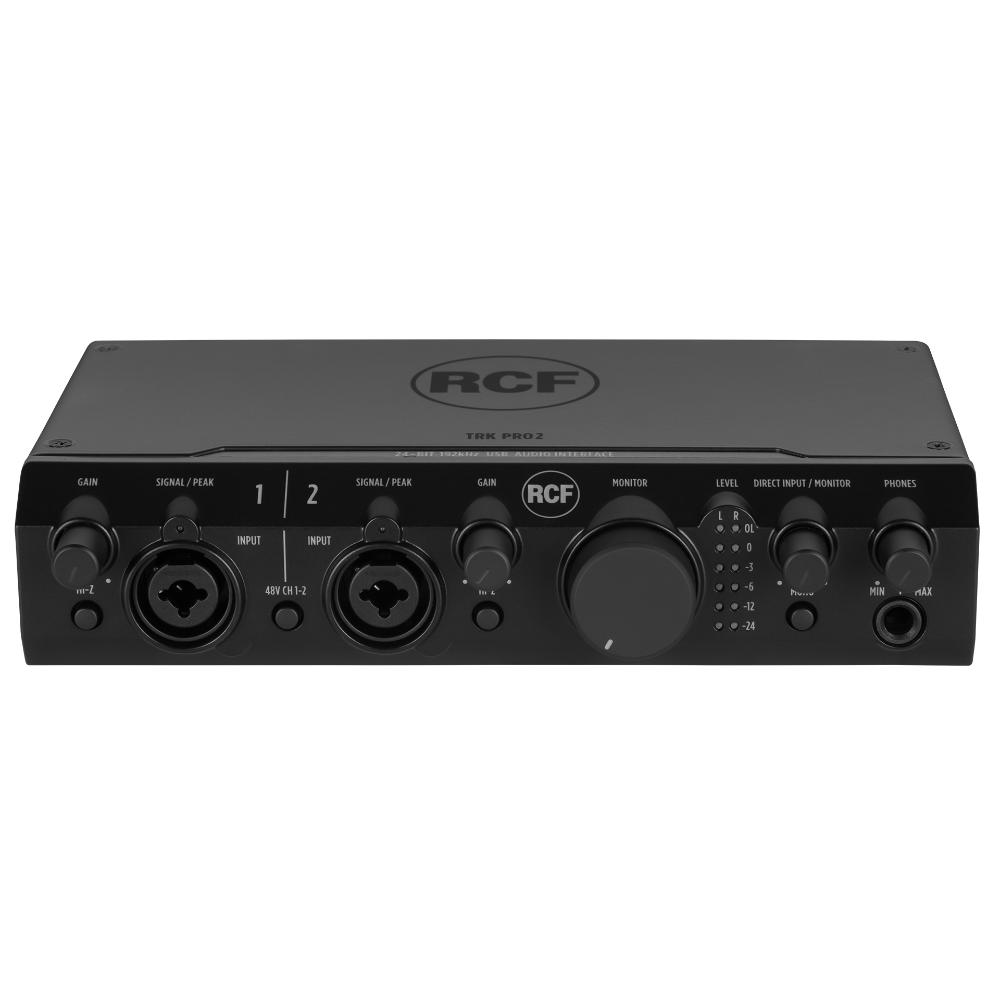

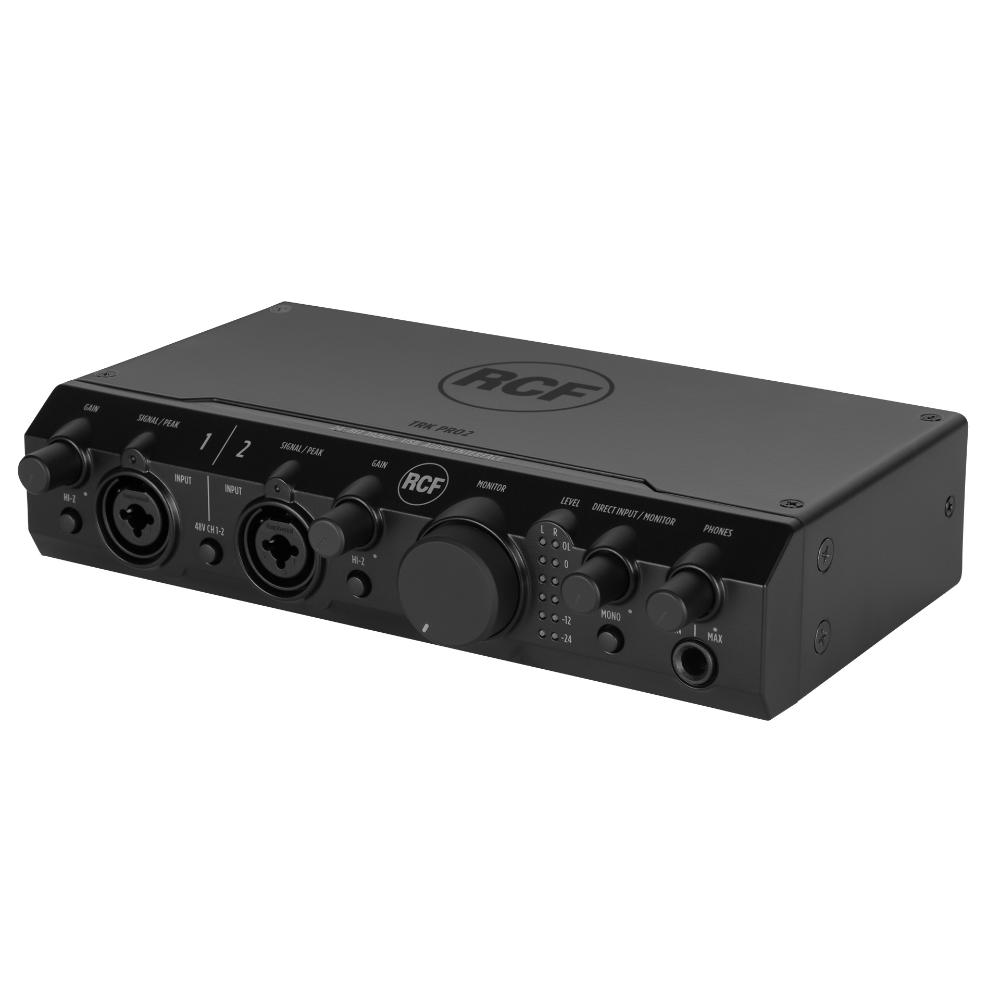

RCF TRK PRO2

17100014

RCF TRK PRO2 ir USB 2.0 audio interfeiss on-the-go ierakstu studijas un profesionālu audio mērijumu funkciju veikšanai.

Īsumā par TRK PRO1:
- 2x HQ audio MIC/LINE/INSTRUMENT ieejas
- USB barošana
- Simetriski audio savienojumi
- Zema trokšņu līmeņa 24-bit/192kHz audio konverteri
- robusts tērauda korpuss

Tehniskie dati

MIC INPUT (Balanced):	Freq. Response: 20Hz-20kHz, +/-0.1 dB
	THD+N: <0.0011%, -1dBFS, 20Hz-20kHz
	Noise EIN: < -120dB
	Dynamic Range: 107dB (A-weighted)
	Input Impedance: 3.5KOhm
	Gain Range: -9 dB ~ +47 dB
	Maximum Input Level: +9 dBu

LINE INPUT (Balanced):	Freq. Response: 20Hz-20kHz, +/-0.1dB
	THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz
	Dynamic Range 107 dB (A-weighted)
	Input Impedance: 15 kOhm
	Gain Range: -20 dB ~ +36 dB
	Maximum Input Level +20 dB

INSTRUMENT INPUT (Unbalanced):	Freq. Response: 20Hz-20kHz, +/-0.1 dB
	THD+N: 107dB (A-weighted)
	Input Impedance: 1MOhm
	Gain Range: -10 dB ~ +46 dB
	Maximum Input Level: +10 dBu

ANALOG OUTPUT (Balanced):	Maximum Output Level 0dBFS=12dBu
	Freq.Response: 20 Hz~20 kHz, +/-0.2
	THD+N <0.0012%, -1dBFS, 20 Hz-20 kHz
	Dynamic range: 107 dB (A-weighted)

HEADPHONES OUTPUT (Unbalanced):	Output Impedance: <10 Ohm
	Max Output Level: 500 Ohm - 114 mW

SUPPORTED SAMPLE RATES:	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
SUPPORTED BIT DEPTH:	16 Bit, 24 Bit

Izmēri:	4.6 x 21 x 12.6 cm
Svars	0.85kg
Meteriāls	tērauds
