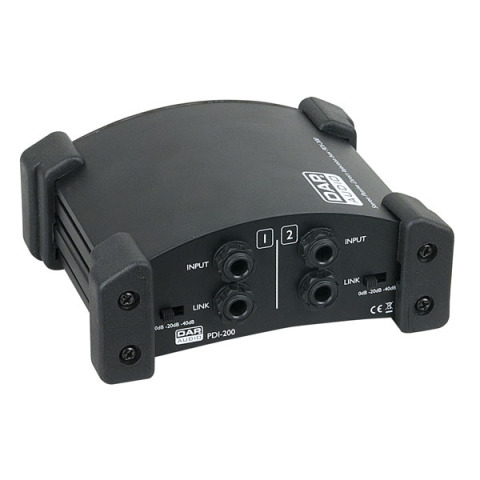

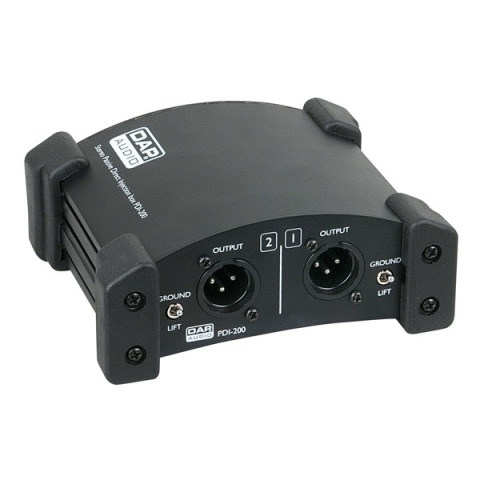

DAP Audio PDI-200

D1944

• Road proof housing with rubber feet
• Low distortion
• No power supply needed
• 0, 20 ,40db attenuation settings

The PDI-200 is a two-channel passive direct injection box. It converts your HI-Z signal into a LO-Z signal. You do not need a battery or phantom power for this direct box. It has very wide applications, great for keyboard signals, acoustic & electric guitar signals and any other instrument signals that need to be plugged into a snake on stage.

Specifications

Input: 6,3mm Jack
Link: 6,3mm Jack
Output: XLR Male
Input Impedance: 50,000 Ohms
Output Impedance: 500 Ohms
Frequency Response: 30 – 50,000 Hz (1 dB)
THD at 400 Hz: 0.003%
Fixed Natural Attenuation: 20 dB
Attenuation Settings: 0, 20, 40 dB
Crosstalk at 1 kHz at 0 dBu: -96 dBu
Dimensions: 140 x 110 x 55 mm
Weight: 1.1 kg
