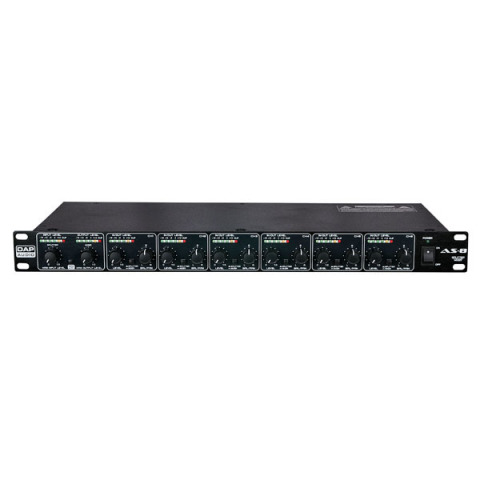

DAP Audio AS-8

D1904

The AS-8 can be used for several purposes. Due to its intelligent design the users can easily switch between a controllable audio mixer with several inputs, or a signal splitter with several controllable outputs. This makes the AS-8 a multifunctional solution for your own monitor mix, multi zone systems, conference applications and more.

Specifications

Input Connectors: XLR and 1/4" TRS
Input impedance: 50 KOhm balanced, 25 KOhm unbalanced
Max. input level: +21 dBu
Output connectors: XLR and 1/4" TRS
Output impedance: 60 Ohm balanced, 30 Ohm unbalanced
Freq Response: 5 Hz – 40 KHz
Controls: input levels, output levels, main link switch, bal/pan switch, ground lift
SNR: >95 dBu
THD: < 0,002% typ. @ +4 dBu, 1KHz
Indicators: 6-digits LED 18/-12/-6/0/+12/clip
Power Supply: 230V AC, 50Hz
Consumption: 15W
Dimensions: 483x195x44 (WxDxH)
Weight: 2,7Kg
